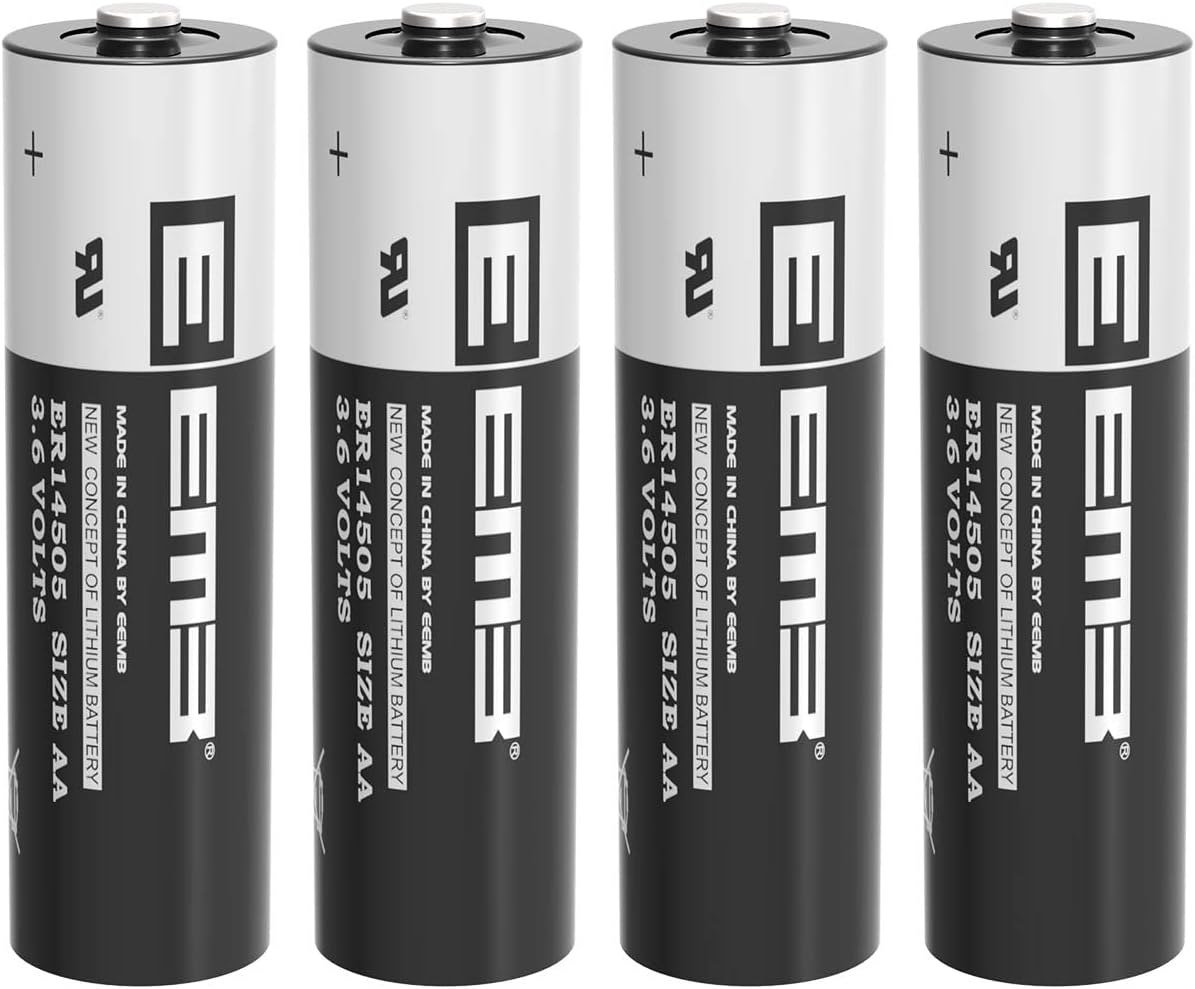

EEMB ER14505 AA 3.6V 2700mAh Lithium Battery Li-SOCL₂ Non-Rechargeable Battery SB-AA11 LS14500 TL-5903 SL-360 ER14500 for Water Electricity Meter Gas PLC Facility Equipment Spare Generic Battery (4)
EEMB ER14505 AA 3.6V 2700mAh Lithium Battery Li-SOCL₂ Non-Rechargeable Battery SB-AA11 LS14500 TL-5903 SL-360 ER14500 for Water Electricity Meter Gas PLC Facility Equipment Spare Generic Battery (4)

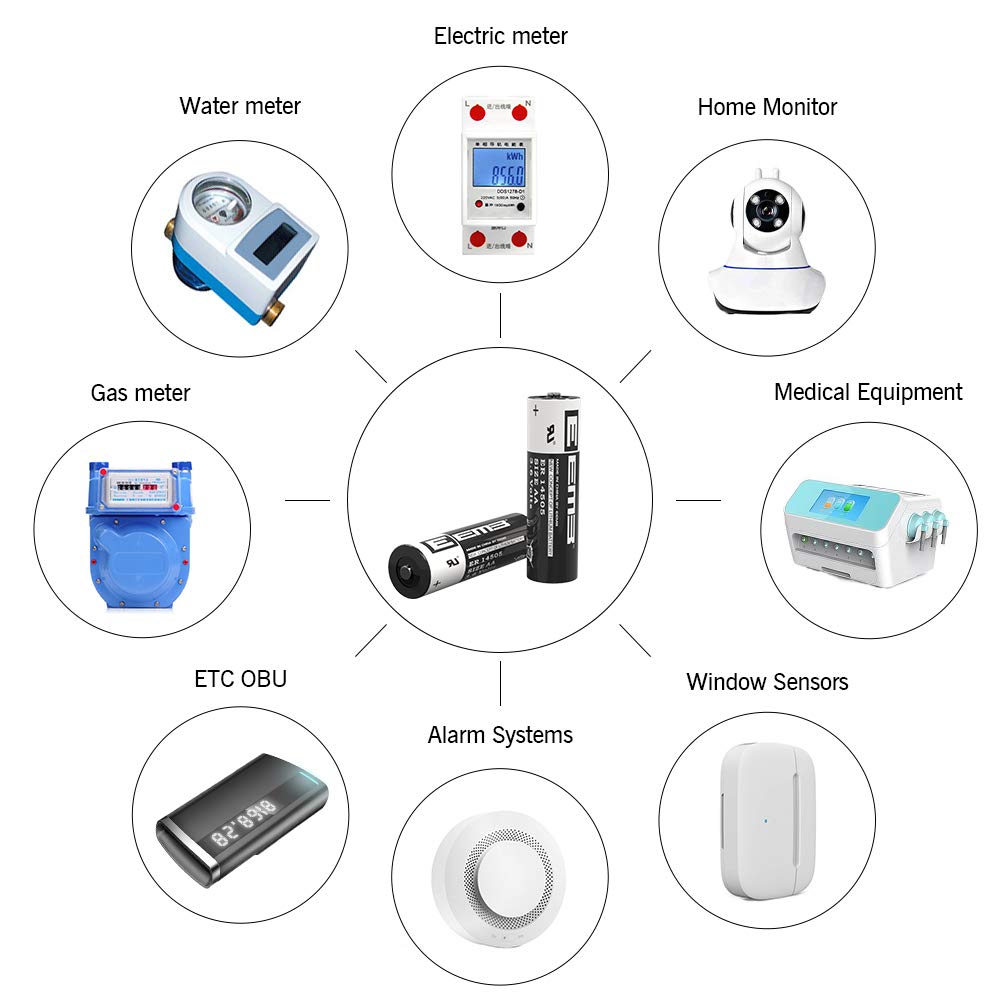

APPLICATION

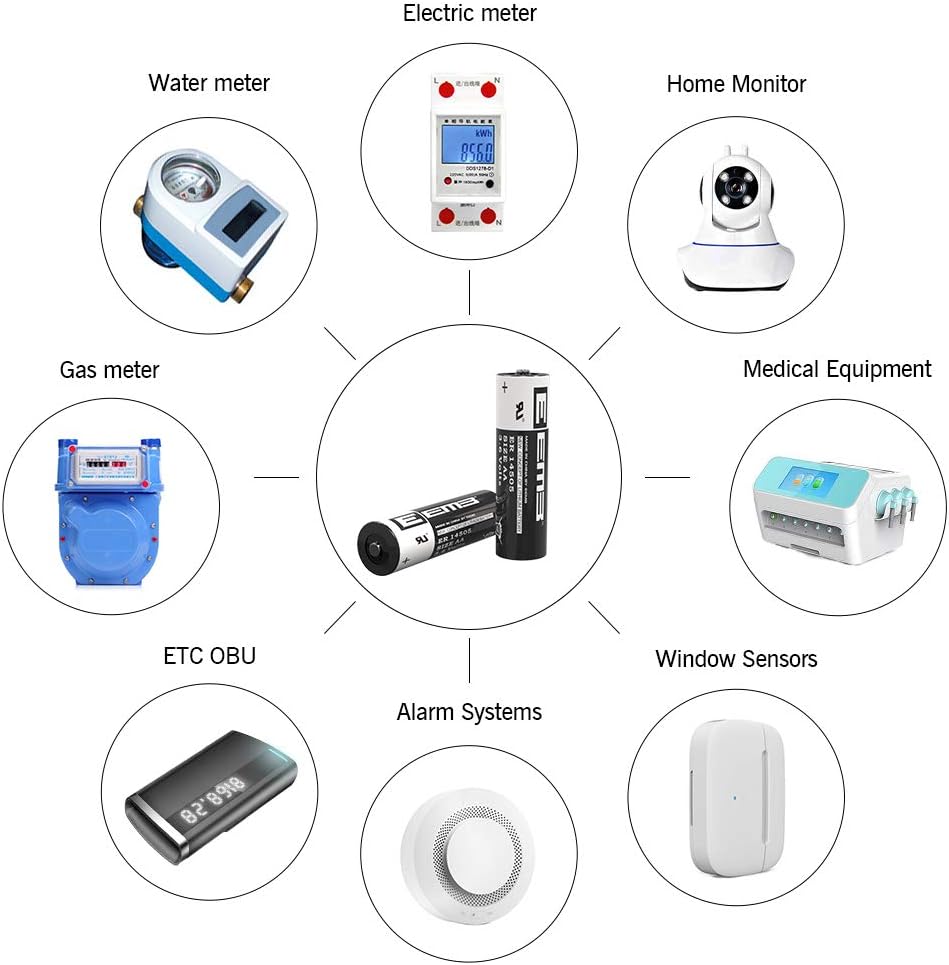

Medical instruments, cash registers, alarm and security systems, wireless devices, mobile asset tracking equipment, electronic meters (water, gas, electricity), automotive telematics, vehicle tracking devices, ETCs (Electronic Toll CollectionSystems).

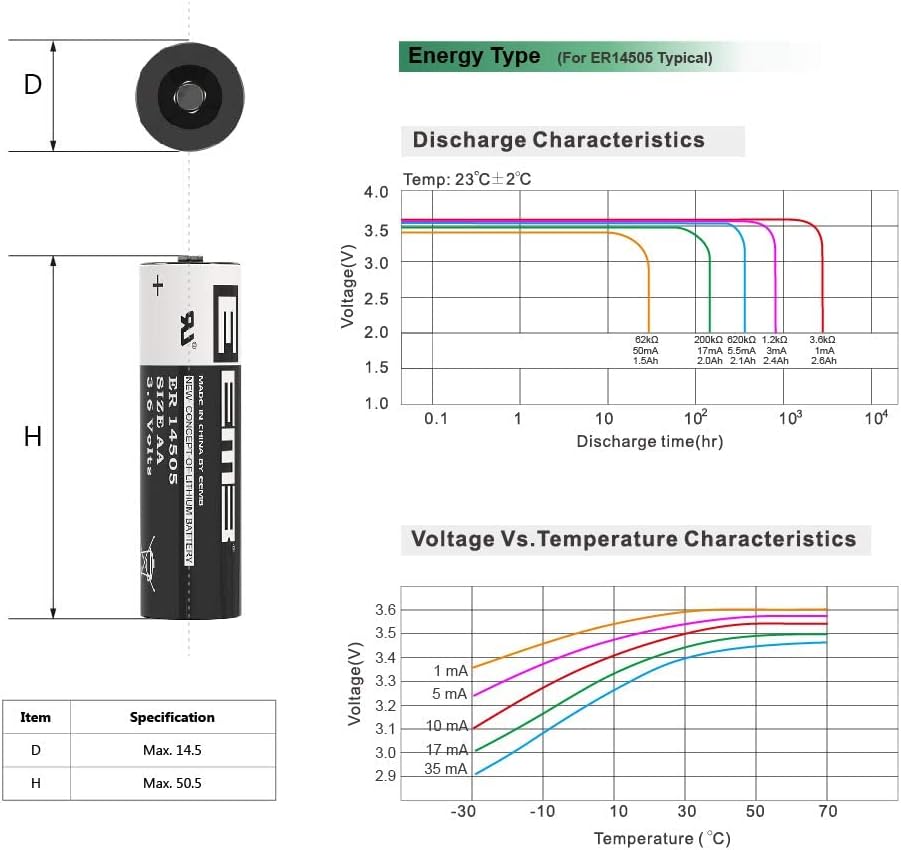

ER14505
Non-rechargeable Battery

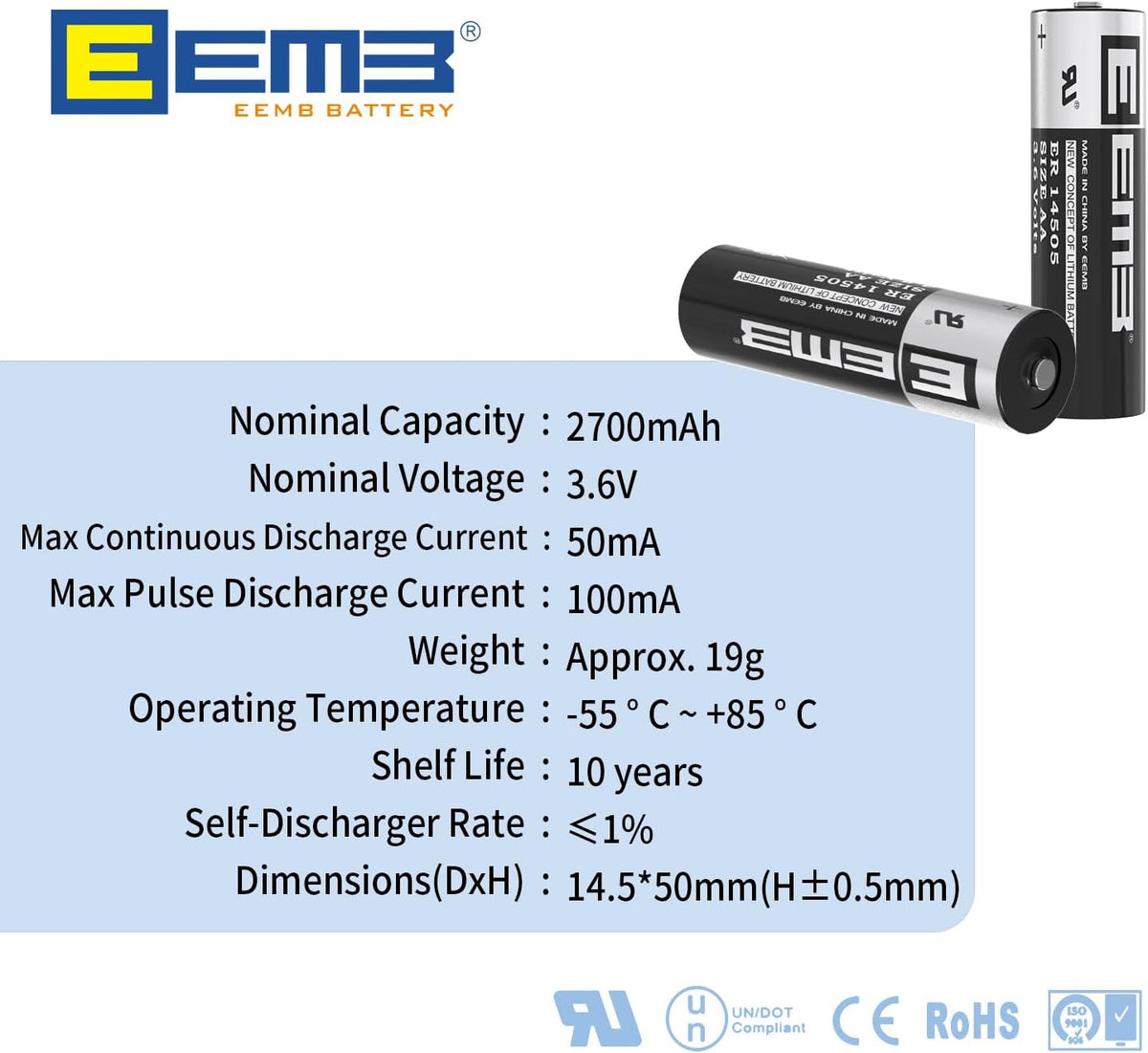

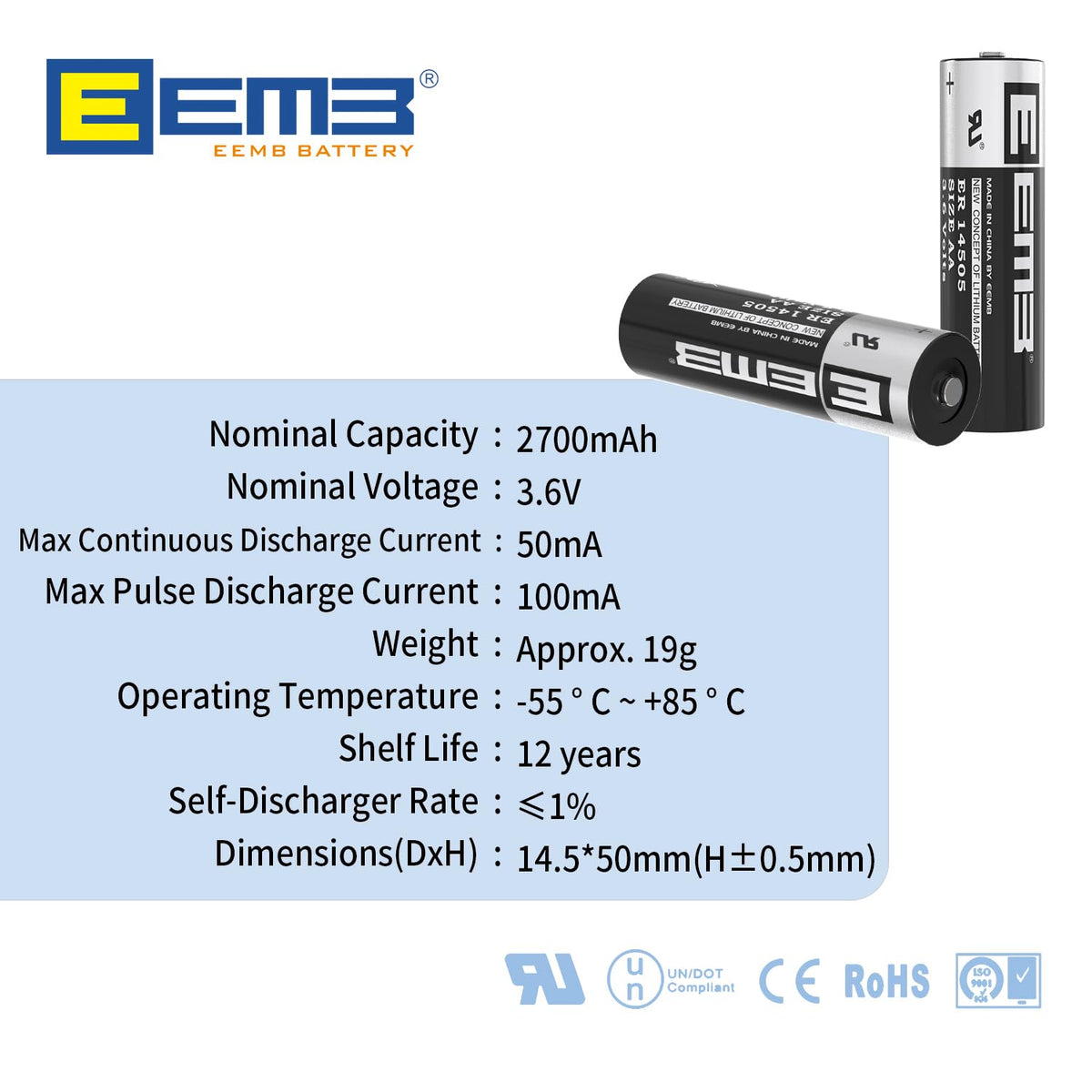

Norminal Capacity: 2700mAh
Norminal Voltage: 3.6 V
Max Continuous Discharge Current: 50mA
Max Pulse Discharge Current: 100mA
Weight: 20g

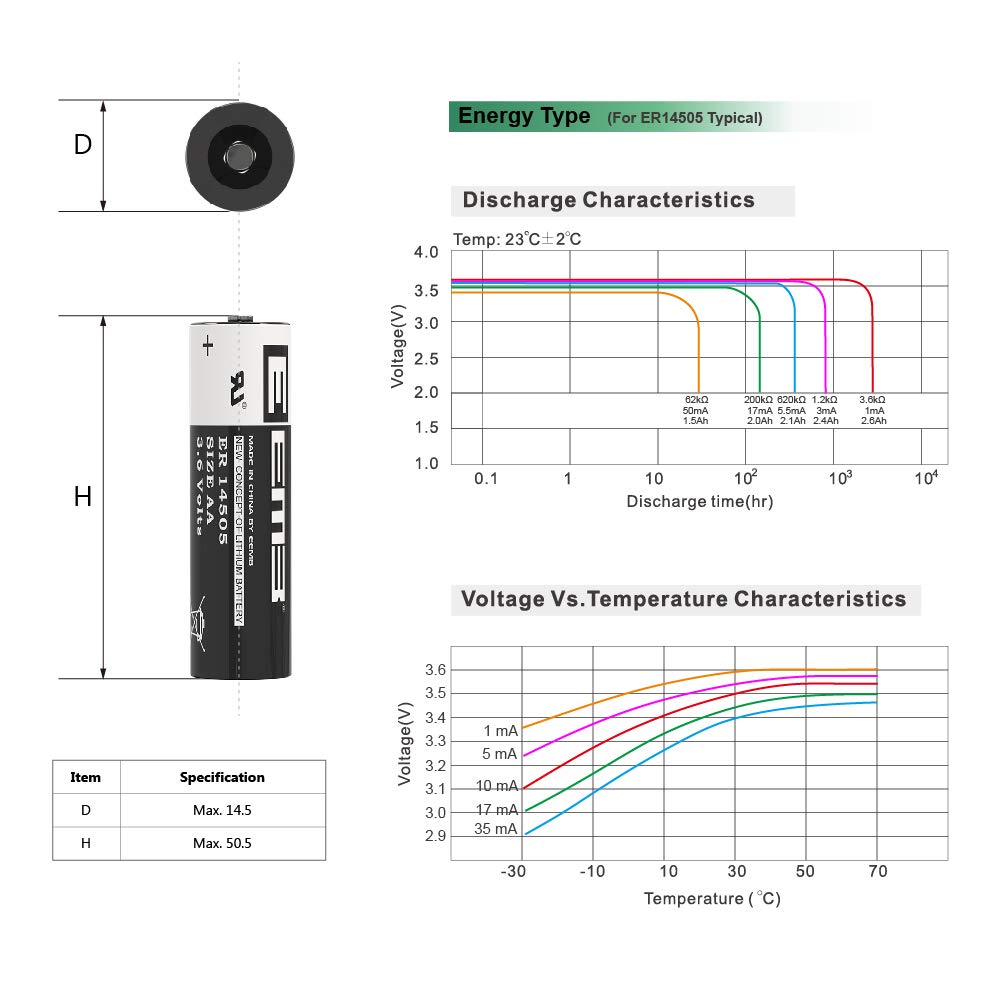

Diameter: 14.5mm
Height: 50.5mm
Operating Temperature: -55 ° C ~ +85 ° C

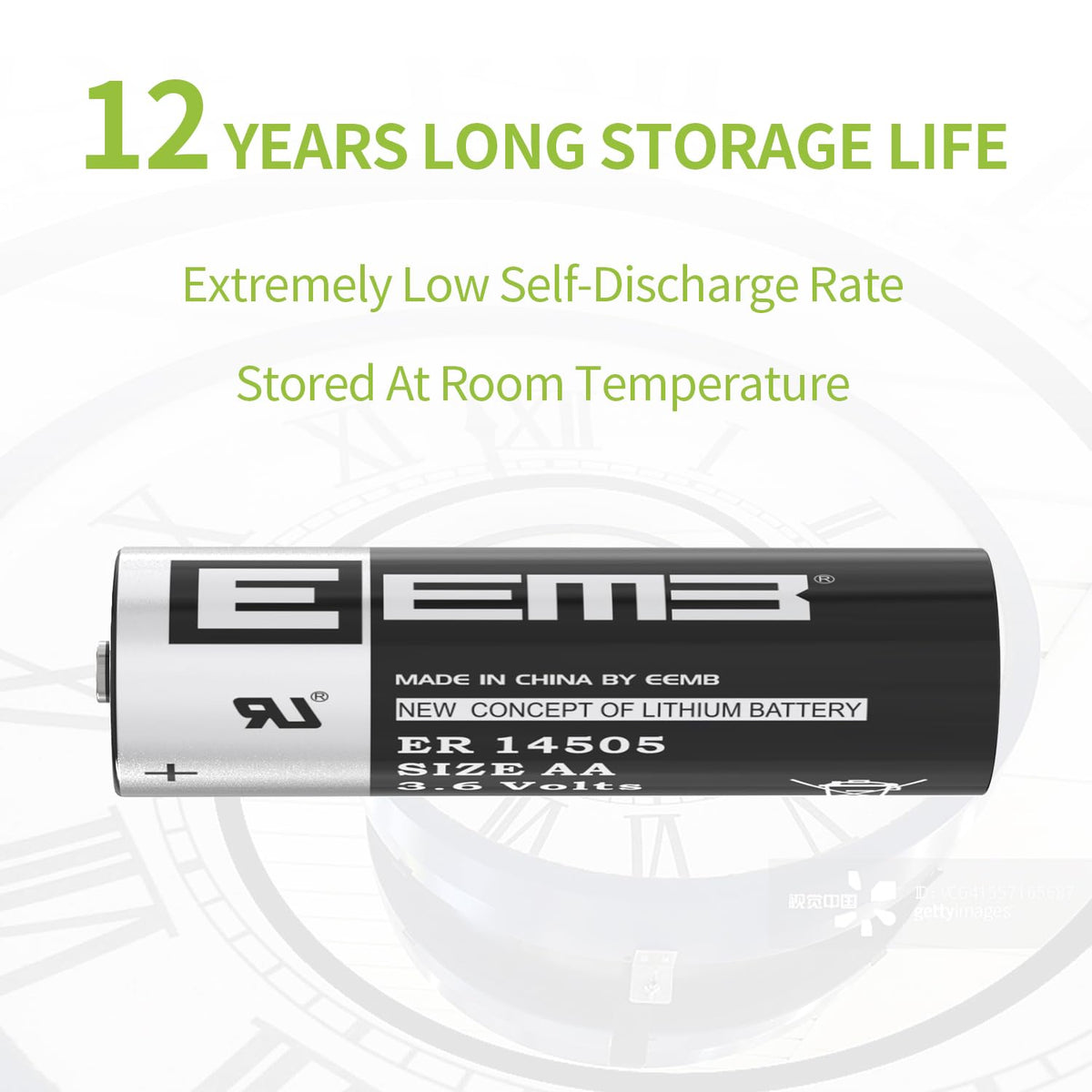

Shelf Life: 10 years
Self-discharger Rate: ≤1%
- Self-discharge rate of less than 1% per year
- Wide range of temperatures: -55°C to +85°C
- Superior shelf life
- Single Use

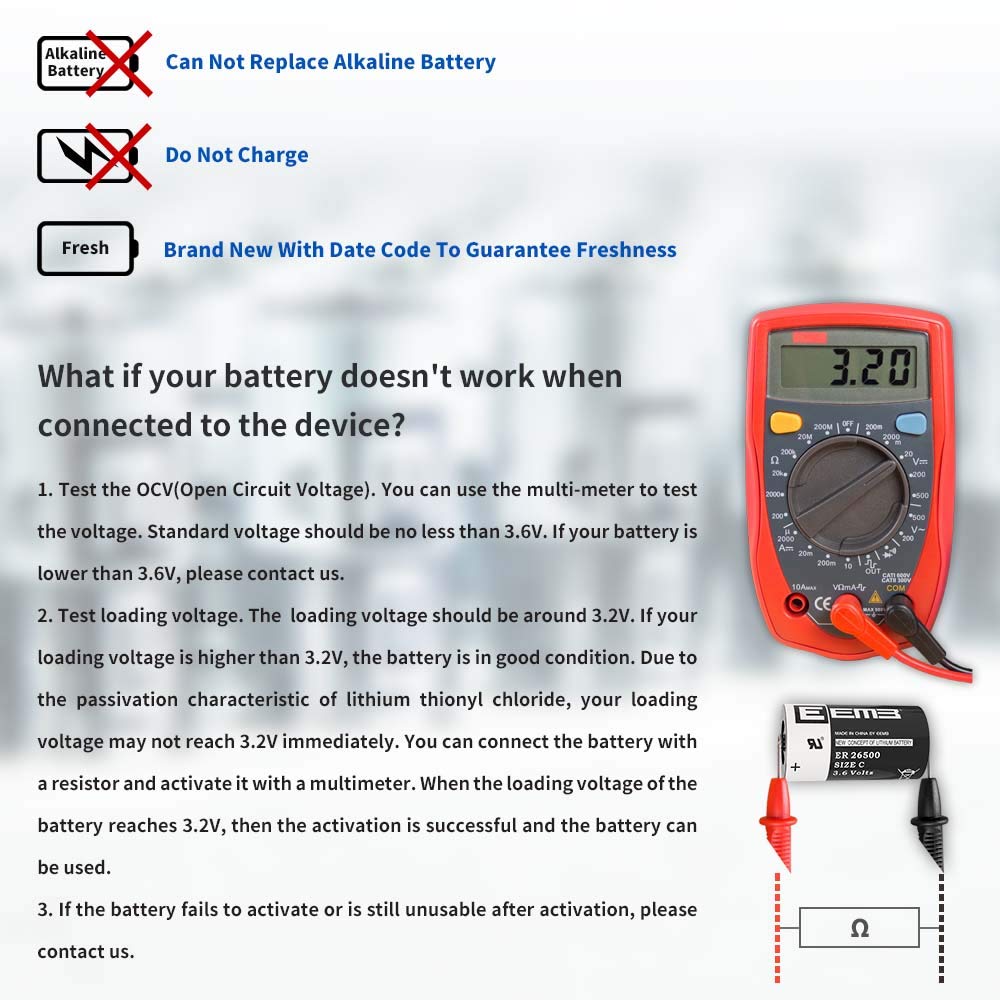

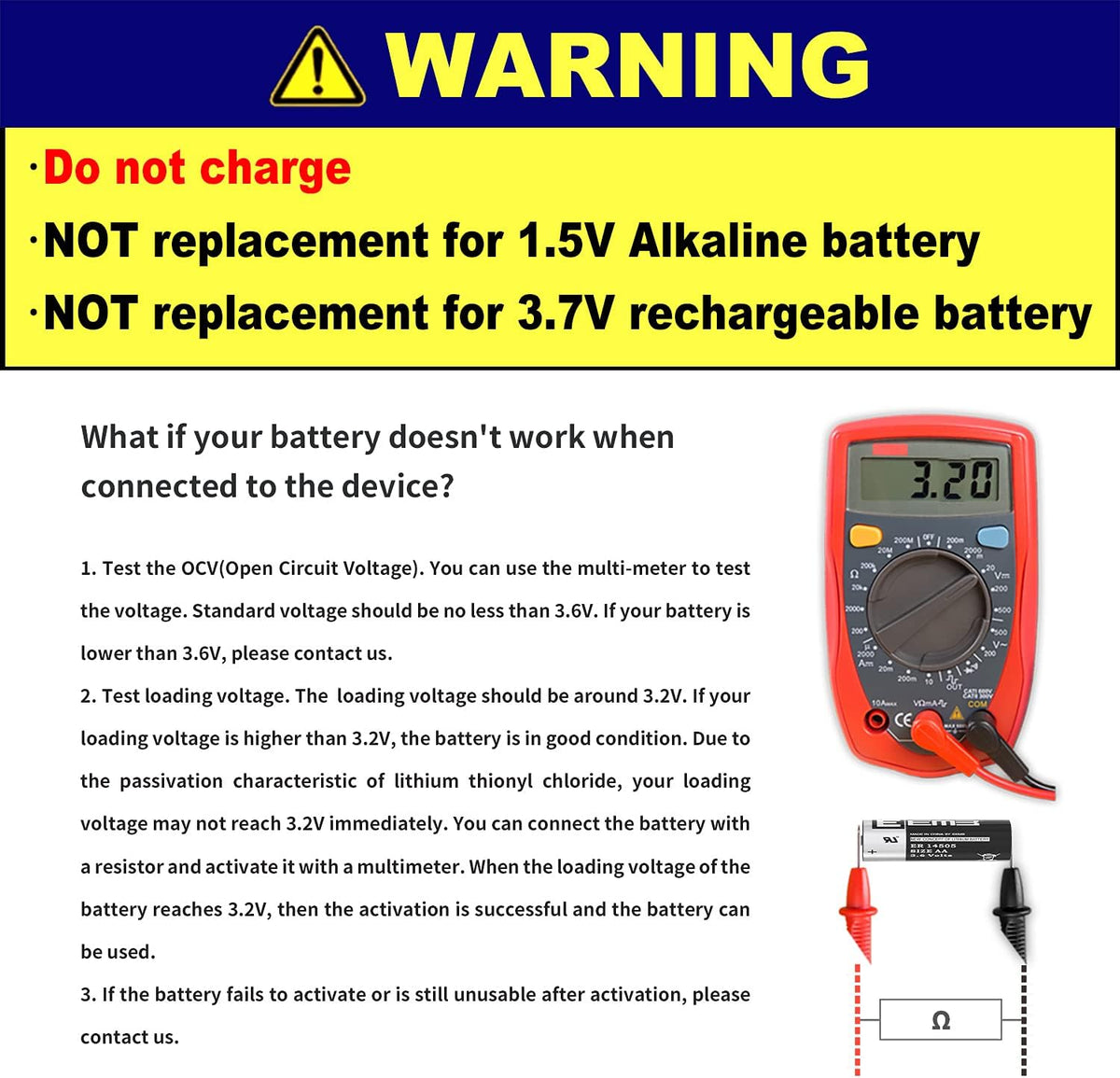

What if your battery doesn't work when connected to the device?
1. Test the OCV(Open Circuit Voltage). You can use the multi-meter to test the voltage. Standard voltage should be no less than 3.6V. If your battery is lower than 3.6V, please tell us.
2. Test loading voltage. The loading voltage should be around 3.2V. If your loading voltage is higher than 3.2V, the battery is in good condition. Due to the passivation characteristic of lithium thionyl chloride, your loading voltage may not reach 3.2V immediately. You can connect the battery with a resistor and activate it with a multimeter. When the loading voltage of the battery reaches 3.2V, then the activation is successful and the battery can be used.
3. If the battery fails to activate or is still unusable after activation, please tell us for help.
Warning:
1. Thoroughly read the product datasheet before use, inaccurate handling may cause leakage, heat, smoke, explosion, or fire, causing device trouble or injury.
2. DO NOT recharge, short-circuit, puncture, disassemble, deform, heat, incinerate, or place the battery near a direct flame. This battery contains flammable materials such as lithium and organic solvent and performing any of the above actions could cause it to ignite explode or become damaged.
3. DO NOT over-discharge, do not force discharge. In case the battery is over-discharged battery has potential of explosion. In case battery is over discharged, when connected with exterior power source or connected with other batteries in series, explosion may occur.
4. Keep this battery out of the reach of children. If it is swallowed, contact a physician immediately.
5. When storing a battery or throwing it away, be sure to cover it with tape. If the battery is contacted with other metal objects, it could cause fire or become damaged.
6. Insert the battery with the "+" and "-" ends correctly oriented.
7. Do not mix use old, new or different brand or type of battery.
8. Do not solder the battery directly.
9. Avoid storing the battery in direct sunlight, or in excessively hot and humid place.
ATTENTION
1.This battery is not rechargeable.
2.This battery cannot replace alkaline batteries.
3.Although our battery has a 10-year shelf life (under special storage conditions), we advise customers not to store batteries for a long time due to the passivation characteristic. We highly recommend customer to use the battery within 3 months to receive optimal performance.

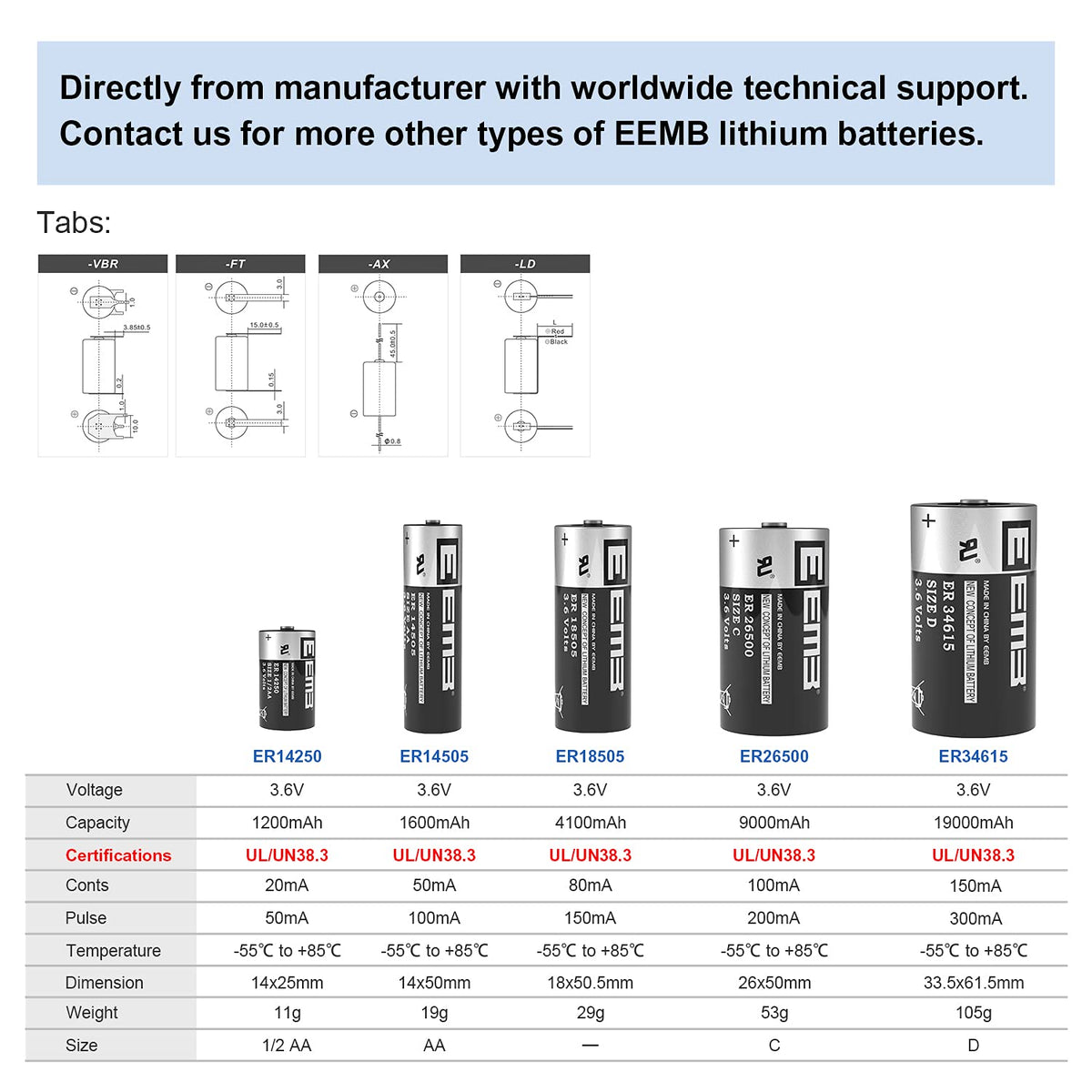

ER14250
|
ER26500
|
ER14505
|
CR14250BL
|
ER34615
|
CR14505BL
|
|
|---|---|---|---|---|---|---|
| Customer Reviews |
4,173
|
464
|
4,709
|
196
|
132
|
180
|
| Price | £9.99 | £9.61 | £13.39 | £8.69 | £35.99 | £13.20 |
| Voltage | 3.6V | 3.6V | 3.6V | 3.0V | 3.6V | 3.0V |
| Capacity | 1200mAh | 9000mAh | 2700mAh | 900mAh | 19000mAh | 1800mAh |
| Conts(mAh) | 20 | 100 | 50 | 7 | 150 | 10 |
| Pulse(mAh) | 50 | 200 | 100 | 70 | 300 | 100 |
| Temperature | -55℃ to +85℃ | -55℃ to +85℃ | -55℃ to +85℃ | -40℃ to +85℃ | -55℃ to +85℃ | -40℃ to +85℃ |
| Dimension | 14x25mm | 26x50mm | 14x50mm | 14x25mm | 33.5x61.5mm | 14x50.5mm |
| Weight | 11g | 53g | 19g | 11g | 105g | 22g |
| Size | 1/2 AA | C | AA | 1/2 AA | D | AA |
- Specifications - 3.6V AA size Li-SOCL₂ non-rechargeable battery. Model: ER14505. Capacity: 2700mAh. Dimensions: 14.5*50.5mm(H±0.5mm)/0.55*1.988inch(H±0.019inch). Confirm voltage and compatibility before ordering.
- Wide application: Works with home automation sensors, door opening detector, temperature sensor, home alarm, bark collar, door sensor, remote control alarm, water meter, electricity meter, gas meter, medical equipment, flashlight, backup power etc.Replaces SB-AA11 LS14500 TL-5903 SL-360 S7-400.
- Key features: Less than 1% self-discharge rate per year at room temperature. Operating range from -55 ℃ to +85 ℃（-67 ℉ to +185 ℉）.
- Usage Notice - Passivation is the characteristic of Li-SOCL₂ batteries, it may occur if stored too long. we recommend not storing them for extended periods to ensure optimal performance.
- Technical Support：With over 20 years of experience in lithium battery manufacturing, we are committed to providing you with high-quality products. If you have any questions or needs, please feel free to contact us and we will reply as soon as possible.
| Number of batteries | 4 Lithium Metal batteries required. |
| Brand | EEMB |
| Battery cell composition | Lithium-Thionyl Chloride (Li-SOCL2) |
| Battery capacity | 2600 milliampere_hour |
| Recommended uses for product | Alarm,Flashlight,Medical,Remote Control |
